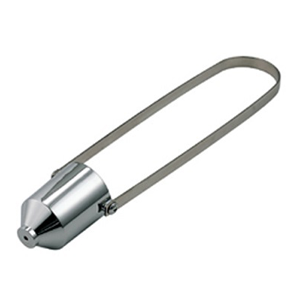

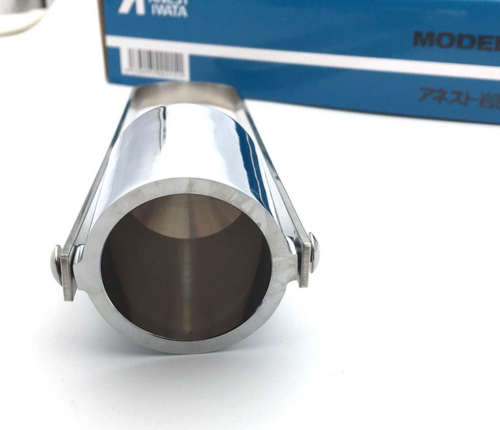

ถ้วยวัดความหนืด ( Flow Cup Viscometer) NK-2 ใช้งานแบบ manual

NK-2 Viscosity Cup Viscometer Flow Cup Stainless Steel

Japan JIS standard, applicable to quick test of viscosity of fluid of Newton or Newton-like in job site. It's widely used for electronic products & plastic-used fluid.

Attention: a high precision of stop watch is required while using.

Specifications:

An internal vertical height:. 43 ± 0.1mm

2 internal aperture:. 3.5± 0.05mm

3 External Aperture:. 6.0 ± 0.5mm

4 cst range :70-370

5 efflux time (in seconds) :20-105 ± 0.2 seconds

6 Internal Diameter:. 50 ± 0.05mm

7 External diameter:. 86 ± 0.1mm

8 Internal Aperture:. 10 ± 0.1mm

9. Operating temperature :0-50 ℃ ± 0.2 ℃

10 .cup volume:. 50ml

Operation steps:
Immerse the cup in the fluid & horizontal surface of the fluid is lower the rim of the cup, take out the cup vertically, meantime press the stop watch, the first break in the liquid's flow is measured-need to evaluate, must measure for 3 times continuously & get the average value of the 3 measurements, it's the flow time of the fluid.
