เครื่องวัดความต้านทานผิว (Surface Resistance Meter) รุ่น FMX-003

Description:

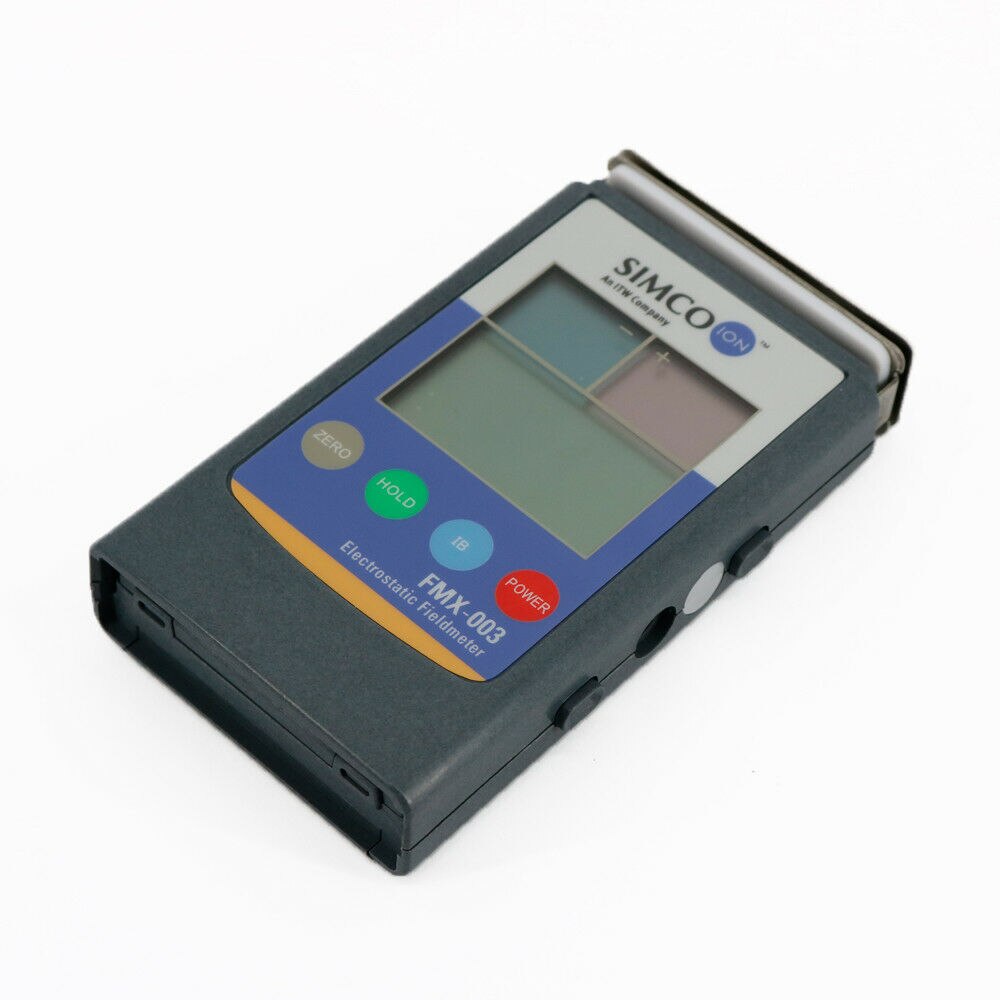

The FMX-003 is a convenient compact and pocketsized electrostatic fieldmeter. With this fieldmeter you can measure and store the field strength and polarity. It enables you to carry out measurements in awkward places. The correct measuring distance is displayed by two integrated LEDs. The electrically conductive plastic housing with an earth connection fitted at the side ensures accurate measurements. The unique bicolour display shows the measured value both numerical and graphically. The status of the battery is shown on the display.

Specification:

Measuring range:0 to ±1.49KV ( Low range)
±1.0kV  to ±20.00kV ( High range)
(range hysteresis: ±1.0kV to ±1.5kV)
0 to ±200V ( low balance measuring range)
Measuring distance:1"±1/64" ( 25mm±0.5mm), LED guide for correct distance  ( between object and fieldmeter)
Response time:<1s
LCD display renewal rate:5 times/s
Accuracy:±10%
Ambient conditions:50°-100°F, (10°- 40°), 0-60%RH ( non-condensing)
Display featues:Bar graph, red LCD positive polarity voltage, blue LCD negative polarity voltage
Bar graph precision:±0.1kV for low range ±1.5kV for high range, ±15V for ion balance range
Digital reading:Auto-ranging , three digits x.xx=0 to ±1.49kV
xx.x=±1.0kV to ±20.0kV(Hi)
xxx=0 to 200 ( lon balance)
lon balance mode display: (IB) is displayed
Battery capacity display indicator
HOLD switch to retain display after measurement
Error sign (ERR)appears if the sensoe is damaged
Alarm feature:Beep sound will be heard during the folloeing actions;
Power on: one beep
Power on with auto Off feature disabled: {Depress power button
for more than 3 seconds} three beeps
Auto power-Off : short beeps at 1 seconds interval for 5 seconds
before power off
Over range: continous sond
Auto power-off:Power turns off automatically after five minutes,{ A OFF} is display whenever this features is disabled
Power source:9V, 6F22Y manganese battery
Battery life:In excess of 30 hours
Size:123mm (L) x  73mm (W) x 25mm (D)
Weight:170g
Case material:Conductive resin( ABS)
