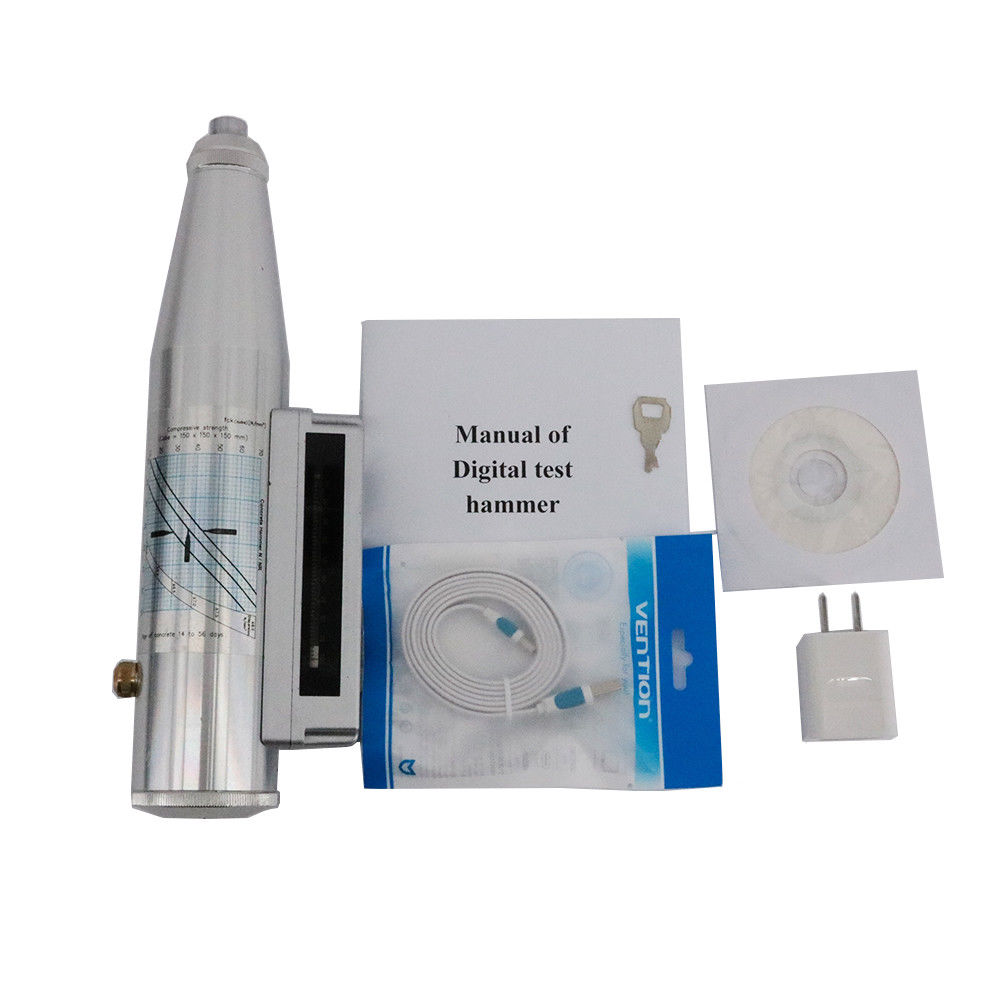

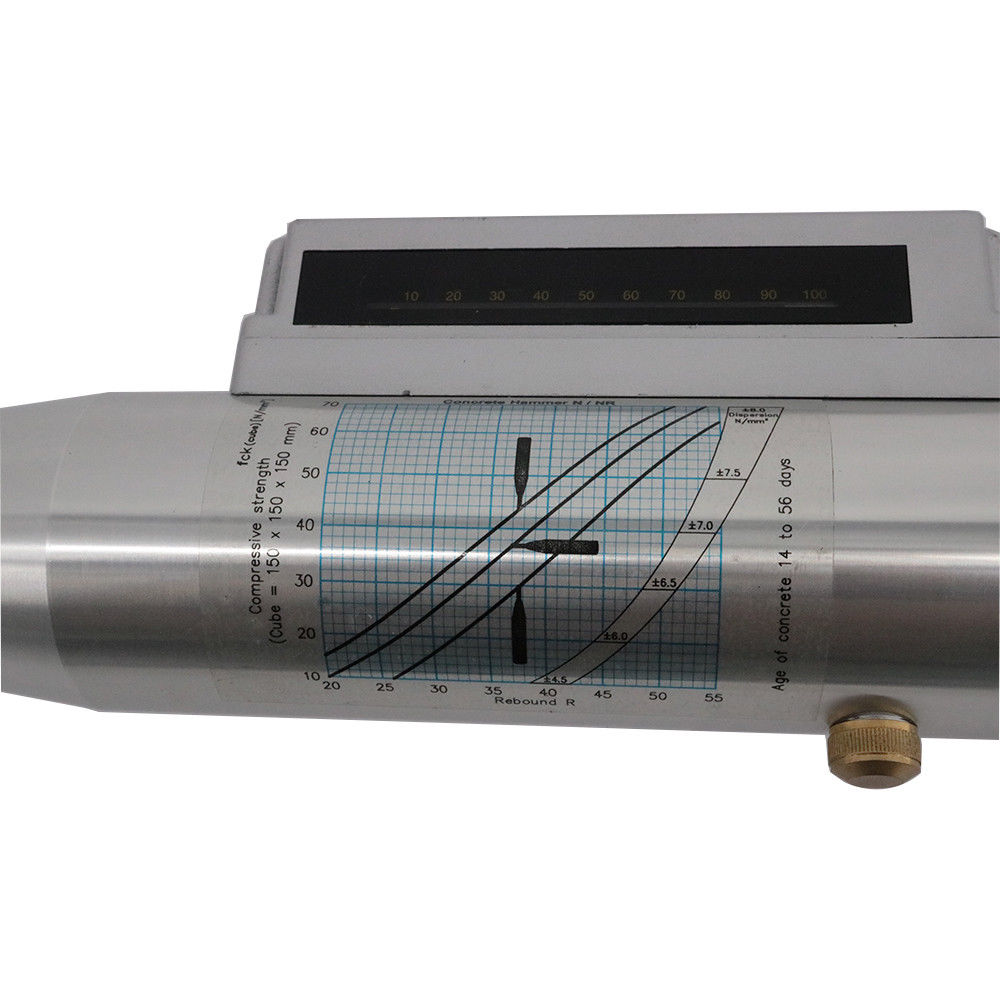

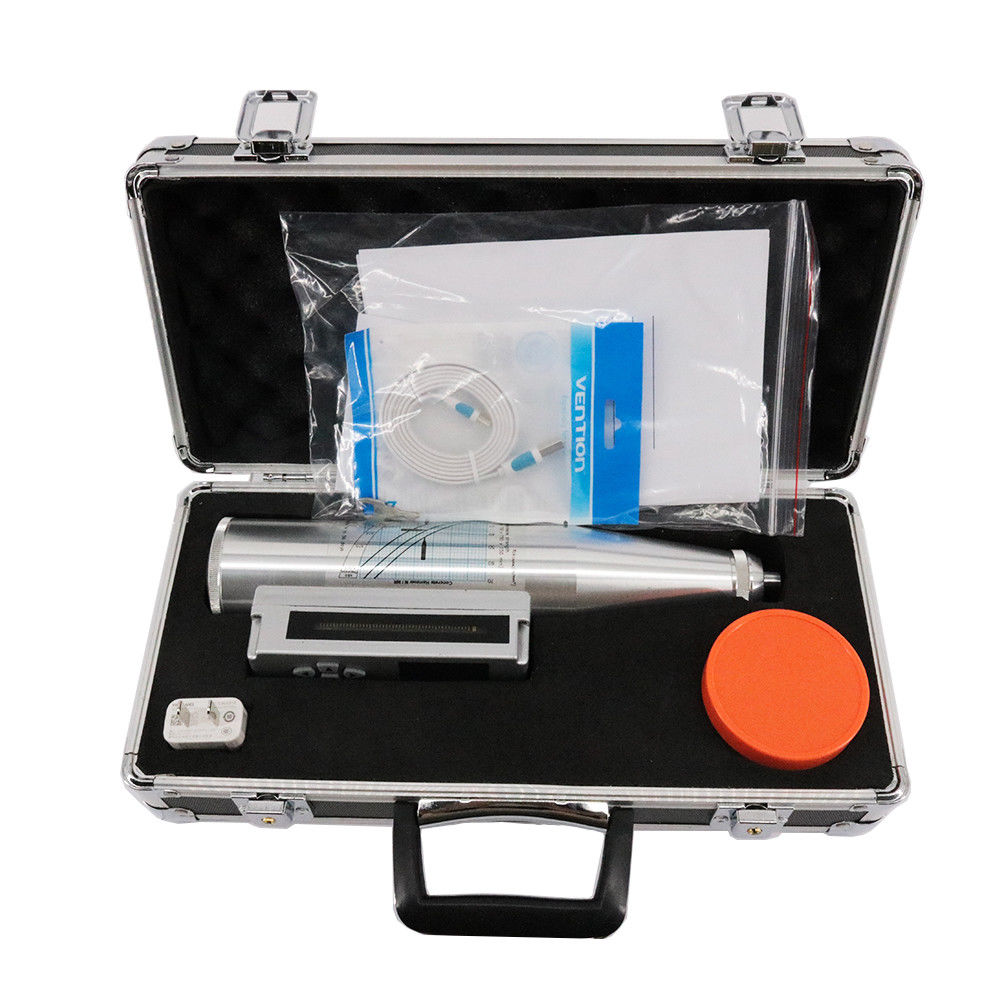

HT-225E Concrete Rebound Hammer Portable Mechanical Hammer Digital





Brief Introduction
HT-225E Digital Concrete Hammer is a high-tech product, especially designed for the needs of in place test for concrete compressive strength, applied to non-destructive test (NDT) hardened concrete compressive strength component in construct projects.

Features
● Submit to < Technical Specification of Inspecting Concrete Compressive Strength by Rebound Method > (JGJ/T23-2011). And ASTM C805, EN 12504
● Unique automatic recording function improves the efficiency of measurement
● Non-contact grating sensor with high precision
● Large storage capacity
● Adopting USB interface, as U flash disk, no need special driver
● Digital part is suitable for all mechanical hammers of our company easily installed and serviced


Model No.

HT-225E

Measuring ranges

10-60MPa

Standard impact energy

2.207J ±0.1J (0.225Kgf.m)

Rigidity of tension spring

785N/M

Stroke of rebound hammer

75mm ±0.3mm

The static friction of pointer slider

0.65N ± 0.15N

Radius of spherical tip

25mm ± 1mm

Average rebound hammer on steel anvil Rm

80±2

Data storage capacity

200 standard components

Power supply

1 x 5# Ni-MH rechargeable battery

Housing dimensions

54 x 280mm

Weight(G.W.)

About 1Kg
