เครื่องทดสอบความหนาฟิล์มเปียกแบบวงล้อ (QUL Wheel Gauge Wet Film Gauge Rolling Wheel Type Wet Film Thickness Gauge) brand QUL 25,50,100,200,500,1000um

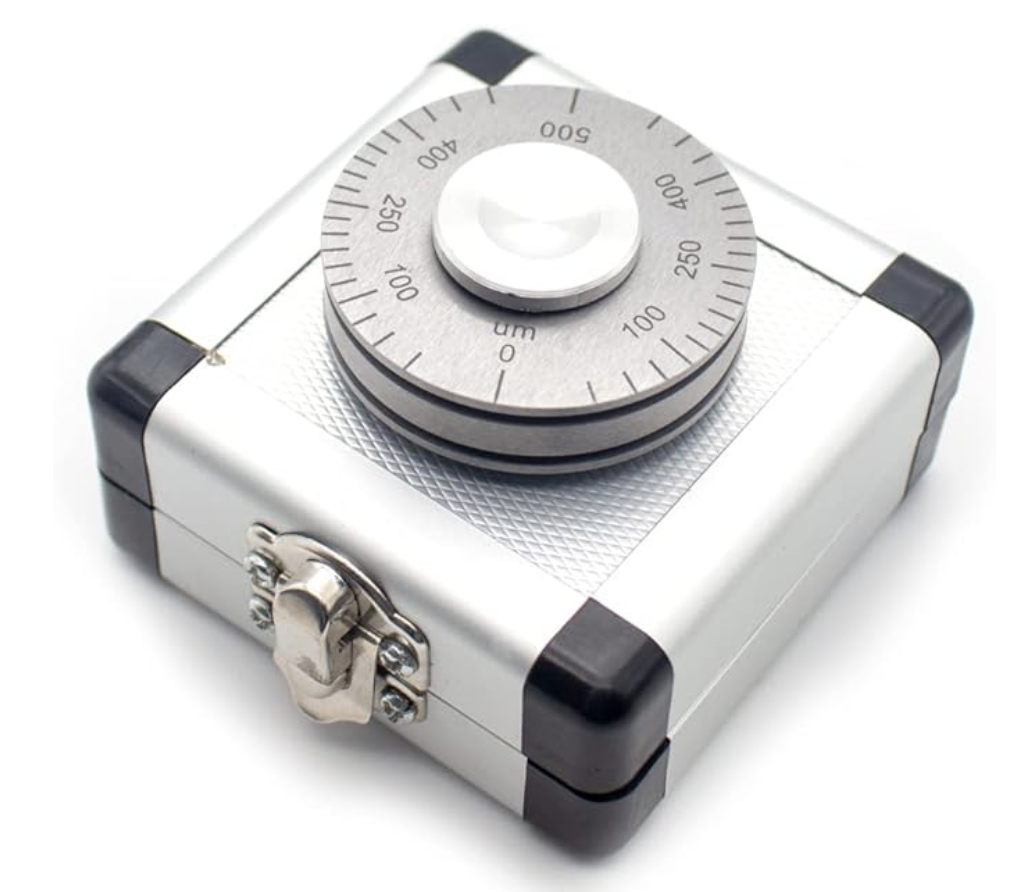

QUL Wheel Gauge Wet Film Gauge Rolling Wheel Type Wet Film Thickness Gauge

Description:

YQH wheel Wet Film Thickness Gauge is a measuring tool for measuring the thickness of wet paint of various paints such as paints and varnishes.

The thickness gauge can be measured not only on a flat substrate but also on a curved substrate, and the measurement accuracy is high.

Instruction:

1. Since it is not possible to exclude pigment particles from remaining between the instrument and the substrate, all mechanical testing methods involve systematic errors, and the measured film thickness is measured to be lower than the actual wet film thickness (at least one average diameter of the pigment particles).

2. The roller thickness gauge is used to accurately measure the thickness of the wet film coating (paint ink, etc.). When measuring, the measuring wheel with the eccentric rim rolls on the paint film.

3.The edge of the eccentric wheel has a scale, the gap is gradually increased, the wheel is rolled over the paint during the test, and the contact point of the rim indicates the thickness of the paint film.

Package including:

1 x QUL Wheel Gauge Wet Film Gauge Rolling Wheel Type Wet Film Thickness Gauge
