Ultrasonic Liquid Level Sensor เซ็นเซอร์วัดระดับของเหลวด้วยคลื่นอัลตราโซนิก รุ่น QDY70B-C3 ราคากันเอง มีประกัน

Output 4-20mA is two wires, output 4-20mA+RS485 is four wires

This link is for DC24V power supply.

If you need other parameters, plz contact us.We can customize for you.

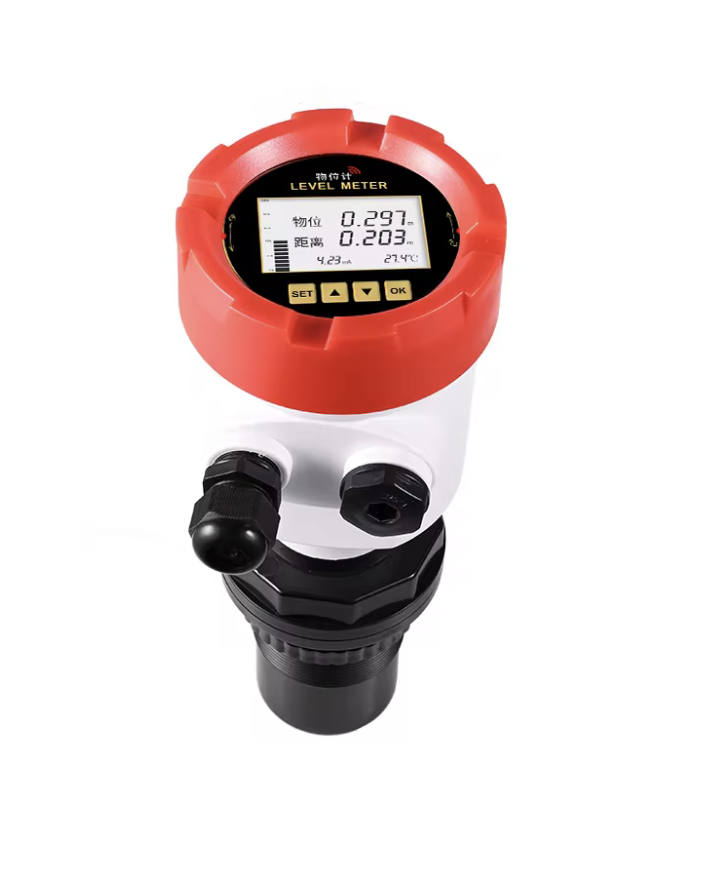

QDY70B-C3 Ultrasonic level gauges/Ultrasonic level transmitter includes several proprietary technologies, is safe and clean, with high precision and long service life, stable and reliable, and convenient to install and maintain, and is applicable to various fields of acid, alkali, salt, anticorrosion, and high temperature.
The meter’s all input and output lines must be with such protection functions as lightning protection and short circuit prevention.
Ultrasonic wave spread speed among gas is influenced by gas temperature, When level meter works, it measures gas temperature needing, compensates for the velocity of sound, so as to ensure the precision of measuring.
