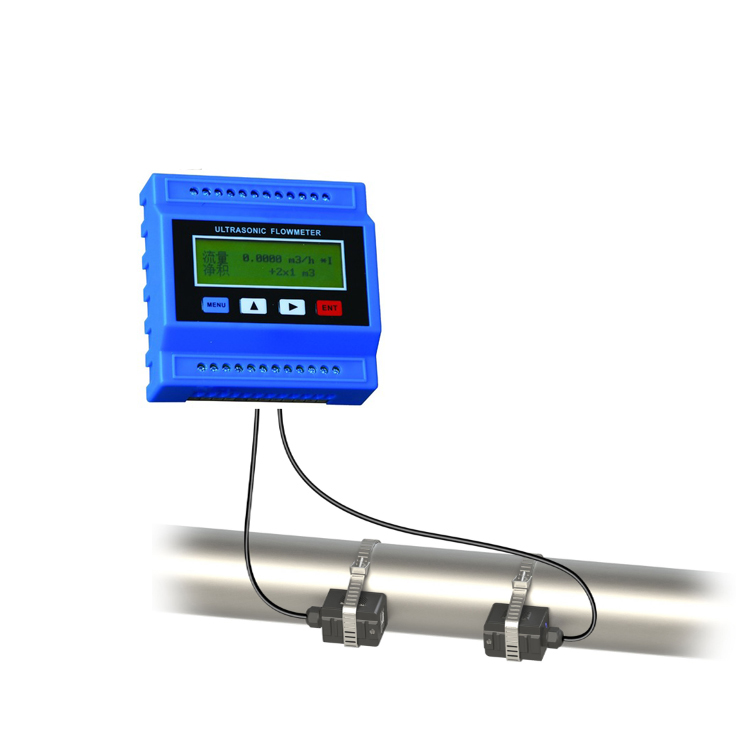

TUF-2000M-TM-1  Modbus Rtu Module Clamp on Ultrasonic Flowmeter

High Accuracy measuring
Linearity: better than 0.5%,Repeatability: better than 0.2%, Accuracy:better than ±1%

Wide measuring range
Several types transducer for selection,measuring pipe size from DN15mm to DN6000mm

English menu
Different version UFM can support Chinese or English display, easy to operate

High Reliability
Adopt low voltage,multi-pulse technology to improve accuracy,useful life and reliability

Strong Anti-interference
Dual-balance signal differential receiver/driver circuit to avoid interference of converter,TV tower, high voltage line etc

Powerful Recording Function
Automatically record the following data:
a. The totalizer data of the last 512 days/128 months/10 years
b. The time and corresponding flow meter of the last 64 times of power on and off events
c. The working status of the last 32 days

Power Supply:DC8-36V
Input:3 channel 4-20mA analog input
Output:Isolation RS-485 output, 2 channel isolation OCT output:1 channel isolation 4-20mA output (two-wire system)
Communication Protocols:Compatible with METER-BUS,MODBUS,Fuji extended protocol and general water meter protocol

Clamp On Transducer Introduction:

Dear customer ,Pls leave a message under order if you need TS-2 or TM-1 transducer when place order.

1. TS-2 type: DN15-100mm,-30-90℃
2. TM-1 type: DN50-700mm,-30-90℃ (Will ship TMS by defult if no message  left)

We also provide other transducersbelow,contact us for price

3. TL-1 type: DN300-6000mm,-30-90℃
4. HTS-2 type: DN15-100mm,-30-160℃
5. HTM-1 type: DN50-700mm,-30-160℃
6. HTL-1 type: DN300-6000mm,-30-160℃
