เครื่องทดสอบความแข็งแบบลีบ (Pentype Leeb hardness tester) รุ่น DY-10 แบรนด์ USA ราคาย่อมเยาว์

Parameter:

Can test hardness: HL, HRC, HRB, HV, HB, HS

Testing accuracy: HLD:±4，HRC: ±1, HB: ±4

Standard impact device: D type impact device

Upper and lower limit setting measurement  range:（170-960）HLD,(17.9-69.5)HRC,(19-683)HB,(80-1042)HV,(30.6-102.6)HS,  (30.6-102.6)HS,(13.5-101.7)HRB

Optional impact device: D(standard), C,DC,D+15,DL,G

Optional impact device quantity at the same time: any

Menu language: Chinese, English, Japanese

Screen display: 128 * 64 dot matrix LCD, with backlight, adjustable contrast

Testing direction: support  360°（vertical  down, Diagonal down, horizontal, diagonal up, vertical up）

Data storage: can store 200 groups testing data

Maximum hardness value: 940HV（D, C,DC,D+15，C-type  impact device）

The radius of curvature of measuring workpiece: Rmin=50mm（special-shaped support ring,Rmin=10mn）

Identification function: automatically identify the type of impact device function

Measuring materials: Steel & Cast steel, alloy tool steel, stainless steel, grey cast iron, spheroidal iron, cast aluminum, brass, bronze, wrought copper alloy.

Voltage monitoring: when the operating voltage is lower than the rated value, it will  automatically alarm

Power: 2 * 3.7V,  rechargeable battery li-ion, 1300mAh

Battery: 2 AA batteries (Not included)

Charging power: 9VDC power adapter

Charging time: about 1 hour

Continuous working time: about 300 hours (without backlighting)

Size: 148mmx84mmx30mm

Weight: 0.32kg

Calibration: using independent calibration mode, it can be calibrated directly under HRC, HB ect

Main functions:

1. can achieve the conversion of 6 kinds of hardness (HL, HRC, HRB, HV, HB, HS)

2. Can repeatedly display the results of each measurement, and can automatically or manually delete the results of the test

3. Can output a single test average at any time or the overall output of all stored data

4. Automatic test battery voltage, battery low voltage warning, the screen shows the power icon

5. Testing report instant output

6. Rich status bar displays, buzzer, error message, time, battery

7. A variety of electricity states

8.Multilingual display, menu type operation, easy and convenient operation

9. Operating temperature: -10- +50 ℃

10. Storage temperature: -30 - +50 ℃

Notice:

The thickness of the test object should not be less than 5 mm and the length should not be less than 2 cm.

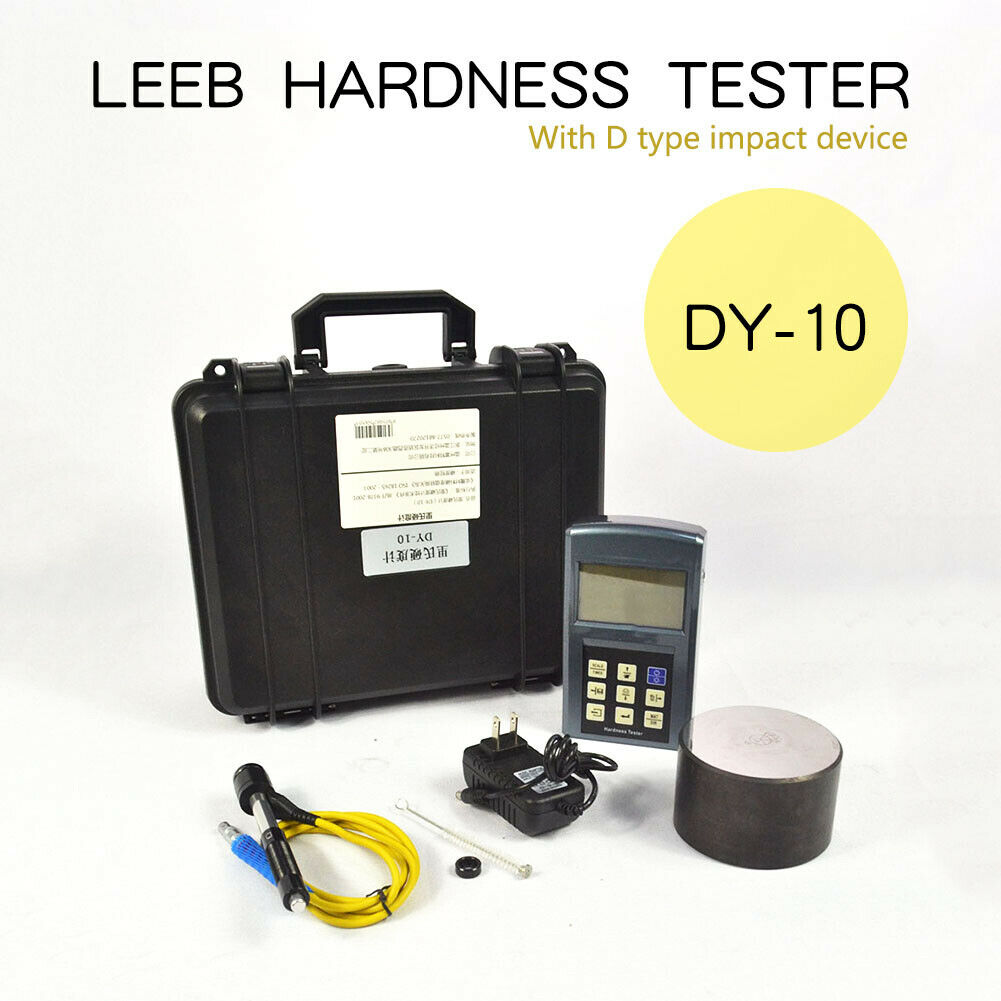

Package contains:

1× Host

1× D type impact device

1× Fast calibration

1× charger

1× Instruction manual
