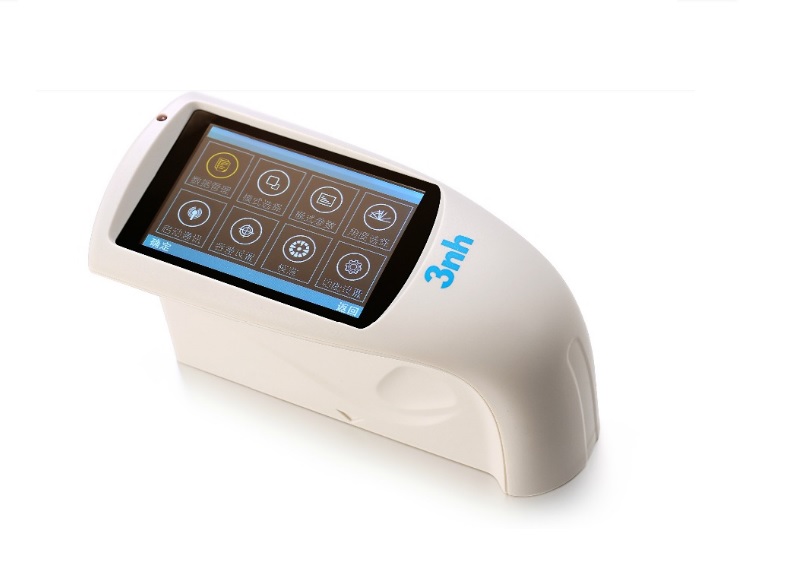

เครื่องวัดความเงา แบบ Touch screen (single-angel Gloss Meter) รุ่น HG60S ยี่ห้อ 3nh มุม 60° ย่านการวัด 200gu Display TFT 3.5 inch

HG60S Economic Gloss Meter

Model:

HG60S

Measuring Angle

60°
Comply with standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457

Measuring Area (mm)

9x15

Measuring Range

0~200GU

Division Value

1GU

Measurement Range

Repeatability

Reproducibility

0-200GU          ±1GU           ± 1GU

Measurement Standard

Conform with JJG696 first class glossmeter working requirement

Chromaticity Corresponding

Corresponding with CIE 1931(2°) under CIE C light source

Errors

±1.5 , ± 1.5%

Measuring Time

0.5s

Dimension

L*W*H : 160mm*75mm*90mm

Weight

350g

Language

Chinese/English

Battery

3200mAh Li-ion Battery, >10000 times(within 8 hours)

Display

TFT 3.5 inch

Interface

USB/RS-232

Storage

/

Software

/

Operation Temperature

 0~40℃(32~104°F)

Storage Temperature

 -20~50℃(-4~122°F)

Humidity

<85% relative humidity,  no condensation

Standard Accessories

Power Adapter, USB cable, User Manual, Calibration Plate

Optional Accessories

Miniature Printer

Note

The specifications are subject to change without notice.
